Mercedes shows the way to future trucking

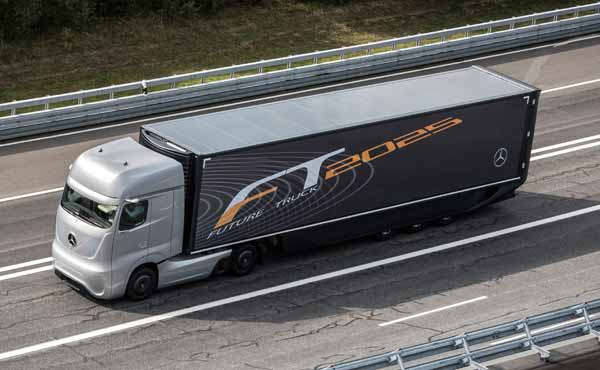

The Mercedes-Benz Future Truck 2025 study will be providing a visually exciting and technically feasible take on the long-distance truck of tomorrow at the 2014 International Commercial Vehicle show (IAA) to be held from September 25 to October 2, 2014 in Hannover in Germany.

According to a Mercedes-Benz press release , in ten years' time, trucks could be driving autonomously on motorways. As a result of this transport efficiency will increase, traffic will be safer for all road users and fuel consumption and CO2 emissions will be further reduced. To do this Mercedes-Benz connects existing assistance systems with enhanced sensors to the "Highway Pilot" system. The release says that autonomous driving is already possible at realistic speeds and in realistic motorway traffic situations. The Mercedes-Benz Future Truck 2025 provides a glimpse of the future shape of trucks.

The Mercedes-Benz Future Truck 2025 constitutes a revolution in efficiency, safety and networking, a revolution for road traffic and its infrastructure, for professional driving and for the road transport sector. This is not a new truck, but rather the key element in the interconnected transport system of the future. Mercedes is developing this as part of the "Shaping Future Transportation" initiative by the company to conserve resources and reduce emissions of all kinds. Other aims are to ensure the highest possible level of traffic safety and to boost networking with intelligent data management considerably for tailor-made vehicle and service solutions.

In terms of design, the Mercedes-Benz Future Truck 2025 is appealing to a great extent with aerodynamics and smooth flowing lines accentuating the vehicle’s appearance. Compact cameras replace conventional exterior mirrors. Its windscreen resembles a visor. The study's integral sun screen and aero roof have a distinctive form.

What is interesting is when the vehicle is at a standstill with the engine switched off the front mask is closed. Classic elements such as the headlamps seem to be missing at first glance. The Future Truck 2025 comes to life when the engine starts. LEDs illuminate the surfaces and light up the paintwork. The front mask gleams and LED bulbs shine instead of conventional headlamps to the left and right in the bumper. Orange flashing lights indicate when the truck is changing direction.

When the fully drivable study is being controlled manually and on the move, the lights are white. When the truck is driving autonomously, the colour of the lights changes from white to blue. Wood flows from the floor to the instrument panel with generous use of the material underlying the inviting atmosphere and sense of well-being on board.

Instead of conspicuous air outlets there is indirect climate control with a touchpad replacing conventional switch strips. The support for the instrument panel is clad in leather. Perfect craftsmanship and build quality sit side by side with the functional character of the truck's technical features.

As an overall concept it combines the high-tech driver's area of the future with a state-of-the-art, paperless office and a living room. The driver in the Mercedes-Benz Future Truck 2025 feels at home even when on the move thanks to the digital picture frame on the cab's rear panel: here personal photographs of family or a past holiday scroll through on the screen.

A radar sensor in the lower area of the front end scans the road ahead at long and short range. The front radar sensor has a range of 250 m and scans an 18-degree segment. The short-range sensor has a range of 70 m and scans a 130-degree segment. The radar sensor is the basis for the proximity control and emergency braking safety systems already available today.

A stereo camera installed above the instrument support behind the windscreen keeps the area ahead of the vehicle in view. This is currently the location of a mono-camera if optional Lane Keeping Assist is ordered. The range of the stereo camera is 100 m, and it scans an area of 45 degrees horizontally and 27 degrees vertically.

The stereo camera of the Mercedes-Benz Future Truck 2025 identifies single- or two-lane roads, pedestrians, moving and stationary objects, all objects within the monitored area and also the road surface. The camera recognises everything that contrasts with the background, and is therefore also able to measure clearances precisely. The front stereo camera also registers the information on traffic signs.

In addition to object and distance recognition, the stereo camera recognises lane markings as a major function for autonomous lane guidance, the release added.
