New Rolls-Royce Ghost, Perfection in Simplicity

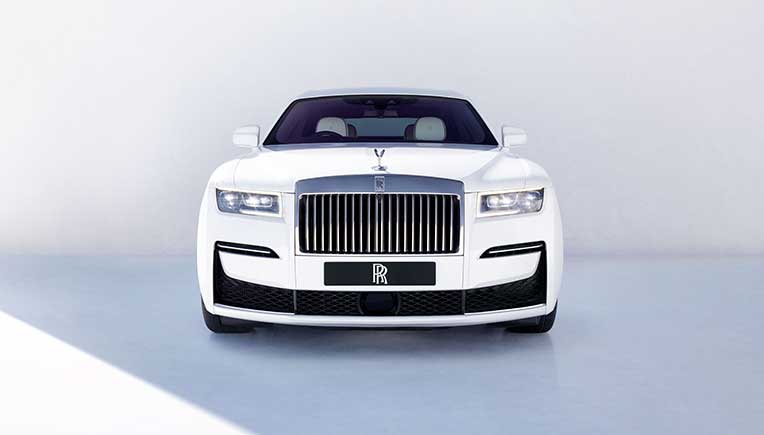

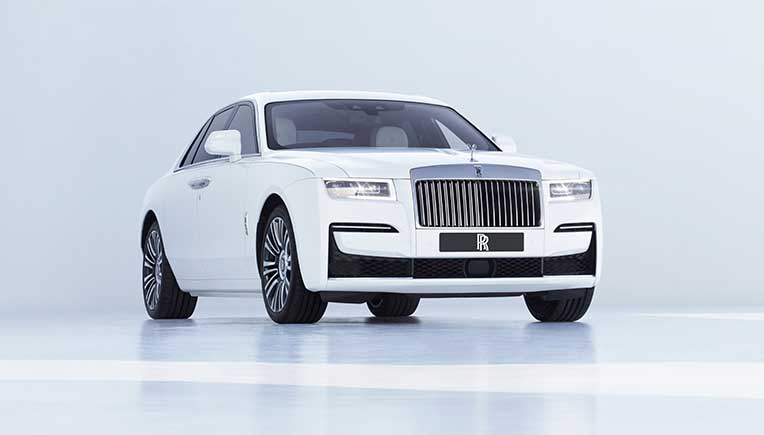

Rolls-Royce has announced the birth of the new Ghost. Rolls-Royce’s proprietary aluminium spaceframe architecture allowed the design team to increase the width by 30mm. This is framed by sharp bow lines that intersect with an angular light signature, creating an assertive yet beautiful front end. In addition, new Ghost was given its own ethereal front-end character. This was achieved not by way of overt design, but with light. Yes, around 20 LEDS underneath the top of the radiator grille subtly illuminate the veins.

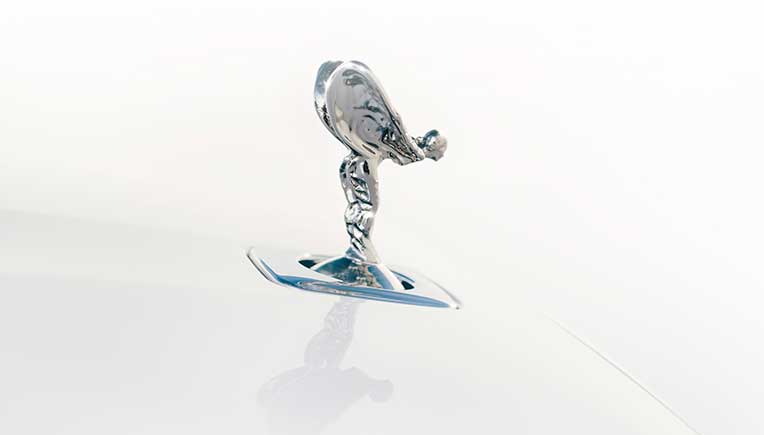

For the first time, the Spirit of Ecstasy is not surrounded by panel lines but is within her own ‘lake’ of bonnet. Two of the cast suspension mounting assembles were pushed to the very front of new Ghost, placing its 6.75-litre V12 behind the front axle to achieve an optimum 50/50 weight distribution.

Client feedback asking for near-instant torque and near-silent running led the marque to further develop the Rolls-Royce 6.75-litre twin-turbocharged V12 petrol engine. A bespoke Ghost engine map was created to ensure ample performance for this dynamic motor car, delivering 563bhp and 850Nm of torque to the all-wheel steer, all-wheel drivetrain. Commensurate with clients’ expectations, maximum torque is available from just 1600rpm

To accommodate this without intruding on new Ghost’s interior suite, its overall length has grown by 89mm, compared to the first Goodwood Ghost, to 5546mm, and its overall width has grown by 30mm to 1978mm.

The marque’s hallmark Magic Carpet Ride has evolved. For new Ghost, engineering specialists redesigned the motor car’s suspension completely to deliver what is called the Planar Suspension System. Named after a geometric plane, which is completely flat and level, the system is the result of ten collective years of testing and development to create a sense of flight on land never before achieved by a motor car.

Created through physical engineering developments as well as sophisticated scanning and software technology, it incorporates a world-first Upper Wishbone Damper unit above the front suspension assembly, creating an even more stable and effortless ride. This works alongside the Flagbearer system, which uses cameras to read the road ahead and prepare the suspension system for any changes in road surface, as well as the marque’s Satellite Aided Transmission.

The Planar software also manages information that requires new Ghost to proactively adapt to intrusions in the road ahead. The first of these technologies is the marque’s Flagbearer system. This  technology consists of a stereo camera system integrated in the windscreen to see the road ahead, adjusting suspension proactively rather than reactively up to 100km/h. The second is Rolls-Royce’s Satellite Aided Transmission system, which draws GPS data to pre-select the optimum gear for upcoming corners. The result is unprecedented levels of ride comfort and control for a motor car.

Effortless Doors

Rolls-Royce clients have enjoyed self-closing doors since the first Goodwood Phantom. Operated by a button on the dashboard and on the C-pillar for motor cars with rear doors, this innovation has been celebrated among customers. For new Ghost, the marque’s engineers elected to further develop this hallmark technology and, for the first time, clients can now also open the doors with power assistance. Clients first open the door with one pull of the interior handle, then allow the handle to return to its resting position while they check for potential hazards, and then pull and hold it for full power assistance on opening. Once the door is opened sufficiently for the client’s egress, they simply stop pulling the handle, which engages a door brake.

Once the client has alighted, they are able to close the door completely automatically at the push of a button on the exterior door handle. If they prefer to close the door manually, the operation is power assisted. On-board longitudinal and transverse sensors, as well as G-force sensors fitted to each door, allow the same speed of operation regardless of hill or driveway angles.

Micro-Environment Purification System

New Ghost benefits from a new Micro-Environment Purification System (MEPS). Existing air filtration technology was further developed to incorporate a full suite of hardware and software improvements.

Further equipment includes: LED and laser headlights with more than 600m of illuminated range, vision assist, including day- and night-time wildlife and pedestrian warning; alertness assistant; a four-camera system with panoramic view, all-round visibility and helicopter view; active cruise control; collision warning; cross-traffic warning; lane departure and lane change warning; an industry-leading 7x3 high-resolution head-up display; Wi-Fi hotspot; self-park; and the very latest navigation and entertainment systems.

The Ghost’s aluminium construction has a higher acoustic impedance compared to steel. Larger sections of the architecture have also been created with specific access points for the installation of acoustic damping materials – new Ghost uses more than 100kg in total, applied in the doors, roof, between the double-glazed windows, inside the tyres and within nearly all of the architecture itself.

Once a highly insulated sound stage is created, components that generate almost imperceptible sound waves are tracked and modified. The inside of the air conditioning ducting, for example, created an unacceptable level of wind noise so it was removed and polished to inform the production of the final component. Even drivetrain hardware was adjusted to create new Ghost’s near-silent soundstage – the diameter of the prop shaft was adjusted and its rigidity increased to improve acoustics.

The seat frames in early prototypes, for example, resonated at a different frequency to the body, so damping units were developed to bring the noise together into a single note. Additionally, the large, 507-litre boot cavity produced a low frequency that could be felt at motorway speeds – ports were built underneath the rear parcel shelf that allowed these disruptive sound waves to escape and therefore better harmonise new Ghost’s overall acoustics.

The new Ghost incorporates a resonance chamber into the body’s sill section; the frequency response of the Bespoke Audio speaker component defined the chamber’s size and shape. In essence, this transforms the motor car into a subwoofer.

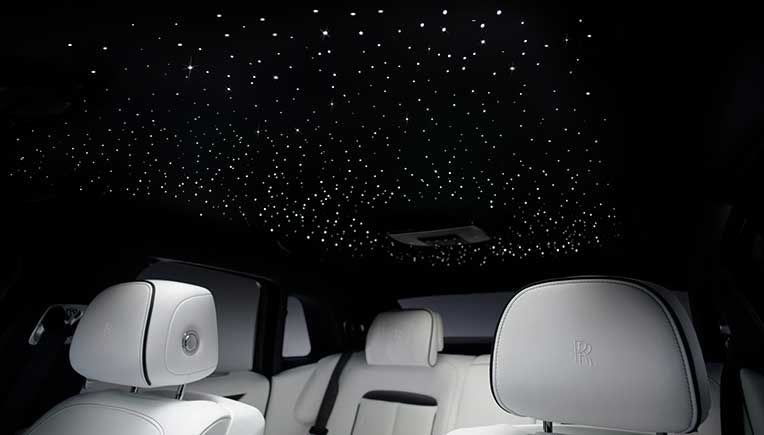

A powerful amplifier controls 18 channels (one for each speaker), providing a 1300W output. Exciter  speakers were used alongside more conventional cone-type speakers. These units are bonded to the surface of an object, imparting vibration from the exciter’s moving mass directly into it – in the case of new Ghost, the Starlight Headliner, in effect transforming the motor car’s ceiling into a large speaker. Two active microphones in the cabin also enable an adaptive function, detecting the absence or overemphasis of frequencies before triggering the amplifier to adjust the loudness of certain frequency ranges to counteract it. The Bespoke Audio system makes the most of the highest quality uncompressed music, providing an exceptional listening experience.
