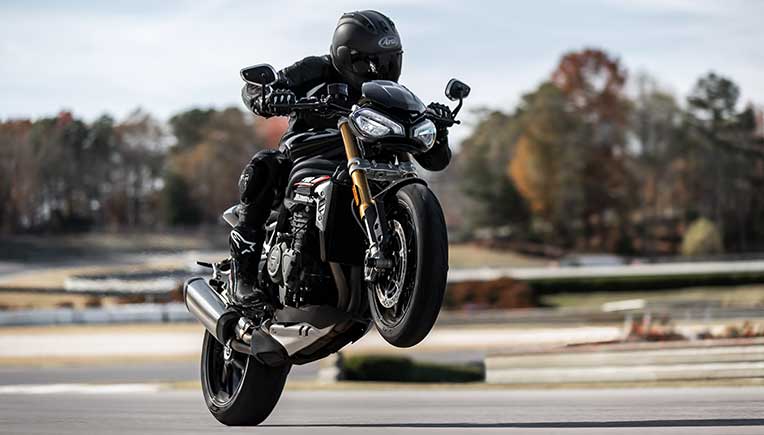

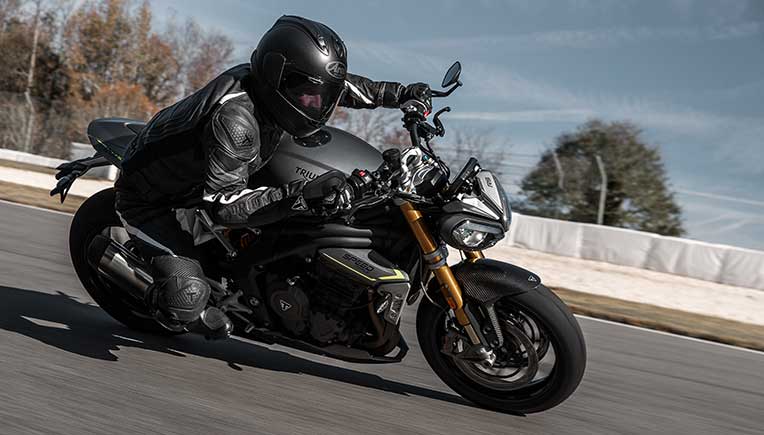

The
2021 Speed Triple 1200 gets performance tuned fully adjustable Öhlins
suspension, Metzeler
RACETEC RR tyres and Brembo Stylema brakes. This is the smartest, sharpest and
most technologically advanced Speed Triple ever. It has optimised Cornering ABS
& switchable Optimised Cornering Traction Control (with IMU), all-new 5”
TFT instruments, five riding modes,
including enhanced Track mode, new Triumph Shift Assist up-and-down
quickshifter, new distinctive full-LED lighting, new full keyless system and
has My Triumph Connectivity System fitted as standard.
The
bike is also now more responsive, it is 650rpm higher revving, and comes with a
new free-breathing intake and exhaust for a hair-raising new triple soundtrack.
The powertrain has been completely re-designed, with every single element
engineered for increased performance and reduced mass, making the new engine
significantly lighter, by 7kg. It’s more compact compared to the previous Speed
Triple powertrain, despite the bigger capacity, giving the new model the
perfect balance of aggression, performance and control.
The
engine delivers blistering new performance, with 30PS more power and a peak
of180PS at 10,750 rpm. It revs harder, with the red line now raised by 650 rpm
to 11,150rpm, and maintains all of the incredible torque and character in the
low and mid range that the Speed Triple has always been renowned for, with 125
Nm peak torque at 9,000rpm, 8Nm more than the outgoing model.
Incredible
power-to-weight ratio
The
outstanding performance of the new 3 cylinder engine, combined with the reduced
weight of the all-new Speed Triple 1200 RS, delivers the highest
power-to-weight ratio in the Speed Triple’s history, over 25% greater than the
previous generation, and nearly double the original 1994 Speed Triple.
The
best sounding Speed Triple ever produced
Thanks
to the all-new free-breathing intake and exhaust system, the new Speed Triple
1200 RS is also the best sounding Speed Triple ever produced, with a visceral
intake roar and characteristic triple exhaust howl.
Thanks
to 12% less powertrain inertia, the engine also picks up quicker, feels
sharper, and sounds sharperstill. There is a new lighter weight slip and assist
clutch which uses state-of-the-art friction compound to reduce the number of
clutch plates, minimising mass and improving clutch feel, while maximising
control during high speed downshifting.
Combined
with a completely new, and more compact, stacked 6-speed gearbox, gear changes
are significantly smoother than the previous generation, with optimised ratio
progression.
Performance
is further enhanced by the new ignition system, with twin tip spark plugs for
increased durability at high engine speeds as well as by a reduced weight of
the cooling system, neatly packaged with an integrated oil circuit heat
exchanger.
The
new Speed Triple 1200 RS has 13mm wider handlebars, delivering a more dominant
and purposeful riding position, giving better feel and control for a more
predictable ride. Improvements in the ergonomics of the bike and the riding
position are achieved through the new footrest position, which has been moved
inwards slightly from the previous generation model, allowing improved ground
clearance without compromising leg room.
Substantial
improvements have also been made to the seat profile and construction, which is
now more comfortable, while allowing the rider to take a more natural tucked-in
position for focussed riding. Seat height is a comfortable 830mm.
The
new 1200 RS comes equipped with a step change in Speed Triple technology,
including all-new 5” TFT instruments, new Triumph Shift Assist up-and-down
quickshifter, Optimised Cornering ABS, switchable Optimised Cornering Traction
Control (with IMU), 5 riding modes – including Track mode, new distinctive full
LED lighting, full keyless system and the My Triumph Connectivity System fitted
as standard.
A
lithium ion battery is fitted as standard, which is 60% lighter than the
equivalent lead-acid battery, reducing the overall weight by 2.3kg. A new
accessory battery charger is available, which is suitable for both lithium ion
and conventional lead acid batteries.
The
compact new premium bodywork is shaped by newly designed elements such as a
carbon-fibre front mudguard, colour coded belly pan and seat cowl with an
interchangeable pillion seat, and a new compact tail unit.

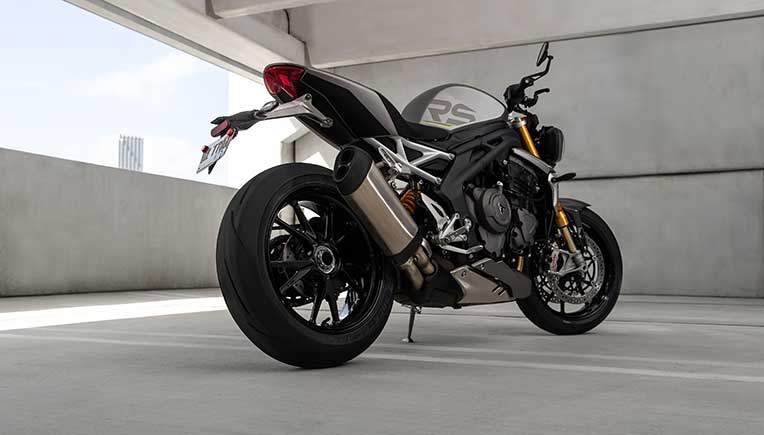

The
aggressive look of the new Speed Triple 1200 RS is reinforced by its new
17-inch lightweight cast aluminium, black painted V-spoke wheels. Two bold new
paint and graphics schemes are available for the new Speed Triple customer to
choose from: Sapphire Black, with red and silver graphics, or Matt Silver Ice,
with black, silver and yellow graphics.
A
host of premium finishes, including dramatic new RS graphics and a branded
handlebar clamp, can be admired on the new Speed Triple and, like all Triumphs,
the incredible attention to detail led to all the cables and hoses being hidden
from view.
SPECIFICATIONS
ENGINE AND TRANSMISSION
|
Type
|
Liquid-cooled, 12 valve, DOHC,
inline 3-cylinder
|
Capacity
|
1160 cc
|
Bore
|
90.0 mm
|
Stroke
|
60.8 mm
|
Compression
|
13.2:1
|
Maximum Power
|
180 PS / 177.5 bhp (132.4 kW) @
10,750 rpm
|
Maximum Torque
|
125 Nm (92 lbft) @ 9,000
|
Fuel System
|
Multipoint sequential
electronic fuel injection with electronic throttle control
|
Exhaust
|
Stainless steel 3 into 1 header
system with underslung primary silencer and side mounted secondary silencer
|
Final Drive
|
X-ring chain
|
Clutch
|
Wet, multi-plate, slip &
assist
|
Gearbox
|
6 speed
|
CHASSIS
|
Frame
|
Aluminium twin spar frame,
bolt-on aluminium rear subframe
|
Swingarm
|
Aluminium, single-sided
|
Front Wheel
|
Cast aluminium, 17 x 3.50 in
|
Rear Wheel
|
Cast aluminium, 17 x 6.00 in
|
Front Tyre
|
Metzeler Racetec RR K3 120/70
ZR17
|
Rear Tyre
|
Metzeler Racetec RR K3 190/55
ZR17
|
Front Suspension
|
Öhlins 43 mm NIX30 upside down
forks with adjustable preload, rebound and compression damping, 120 mm
travel.
|
Rear Suspension
|
Öhlins TTX36 twin tube
monoshock with preload, rebound and compression damping, 120 mm rear wheel
travel.
|
Front Brakes
|
Twin 320mm floating discs.
Brembo Stylema monobloc calipers, OC-ABS, radial master cylinder with
separate reservoir, span & ratio adjustable.
|
Rear Brakes
|
Single 220mm disc. Brembo twin piston caliper, OC-ABS. Rear
master cylinder with separate reservoir.
|
Instruments
|
Full-colour 5" TFT
instruments
|
DIMENSIONS AND WEIGHTS
|
Length
|
2090 mm (82.3 in)
|
Width (Handlebars)
|
792 mm (31.2 in)
|
Height Without Mirrors
|
1089 mm (42.9 in)
|
Seat Height
|
830 mm (32.7 in)
|
Wheelbase
|
1445 mm (56.9 in)
|
Rake
|
23.9 °
|
Trail
|
104.7 mm (4.1 in)
|
Wet weight
|
198kg (437 lb)
|
Fuel Tank Capacity
|
15.5 litres (4.1 US gal)
|
FUEL CONSUMPTION
|
Fuel Consumption
|
50.2 mpg (5.6 l/100km)
|
CO2 Figures
|
130 g/km
|
Standard
|
EURO 5
CO2 emissions and fuel
consumption data are measured according to regulation 168/2013/EC. Figures
for fuel consumption are derived from specific test conditions and are for
comparative purposes only. They may not reflect real driving results.
|
SERVICE
|
Service interval
|
10,000 miles (16,000km)/12
months
|
