Full-hybrid vehicle with 48-volt high-power technology from Continental

A full-hybrid vehicle with 48-volt technology – this was previously deemed impossible. For a hybrid vehicle to drive using just electricity, the electric part of the drive would normally use high voltage technology – high voltages of up to 800 volts. However, Continental’s engineers have now succeeded in developing a 48-volt hybrid system that boasts features similar to those of a high-voltage electric drive, namely 48-volt high-power technology.

“Thanks to its broad systems expertise, Continental Powertrain is mastering all variants of the electric drive, from 48-volt systems to hybrid technologies, right through to high-voltage components. We offer expertise and state-of-the-art technology from a single source,” said Andreas Wolf, CEO of Continental’s powertrain business.

The new 48-volt high-power system, comprising an electric motor complete with integrated power electronics and a battery, reduces fuel consumption and thereby also CO2 emissions by around 20 percent compared with similar vehicles fitted with combustion engines. At the same time, the new 48-volt technology is also considerably cheaper than the high-voltage systems used up to now. “Our development objective was to achieve a level of driving efficiency with 48-volt technology that was previously reserved for high-voltage systems and we have now done exactly that,” said Stephan Rebhan, head of Technology & Innovation at Powertrain.

New stage of development: full hybrid without a complex, high-voltage system

The 48-volt systems were previously known as mild or P0 hybrids. They involve relatively unobtrusive electrification of the powertrain. Fuel consumption is reduced mainly with the support of the combustion engine (boosting) during acceleration and the recovery of excess kinetic energy (recuperation) when the vehicle decelerates. However, purely electric driving is not possible with such systems, which Continental already manufactures for a number of automotive manufacturers.

 In the latest stage of development, the 48-volt system was repositioned in the powertrain. The electric motor was no longer placed in front of the combustion engine on the crankshaft, but behind it – between the combustion engine and transmission (P2 hybrid). This meant that fuel savings were able to increase and, in certain situations, such as driving through a 30 km/h speed limit zone, the vehicle could be driven using the electric motor alone.

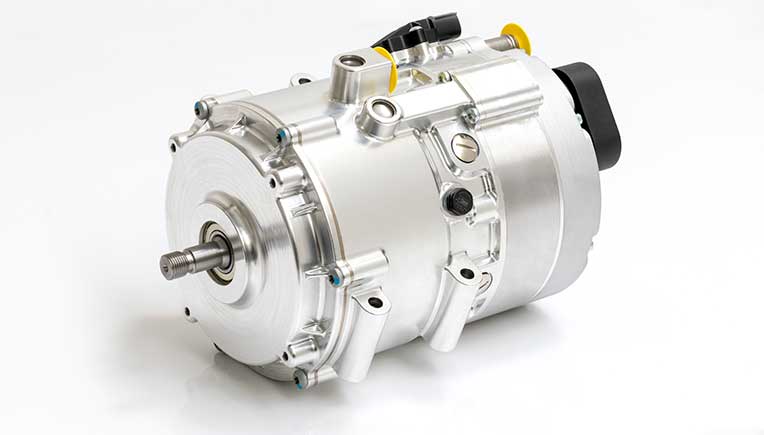

With the new 48-volt high-power technology, this hybrid system enables the same functionality as previous, full-hybrid vehicles. The key component here is a new, water-cooled electric motor, the peak output of which was doubled to 30 kW in comparison with that used previously. Electric-only driving is therefore possible up to a speed range of 80 to 90 km/h.

The developers were able to achieve a 100 percent increase in power while maintaining the diameter of the motor. Overall, 48-volt high-power technology requires only slightly more installation space than the previous system. The difference in weight is also minimal.

However, the electric motor is not the only new component of the 48-volt high-power technology. The integrated power electronics also uses a new technology that now enables it to handle significantly higher currents. The innovations of the new 48-volt high-power technology result in a level of electrical efficiency that surpasses the previous system by almost 10 percent. And during recuperation (the recovery of excess kinetic energy when the vehicle decelerates), the new technology is much more effective than was previously the case, because the losses incurred in the electric drive system has been halved.

The 48-volt high-power technology therefore provides all the benefits of a conventional, full-hybrid vehicle with a high-voltage system – significantly lower fuel consumption and CO2 emissions as well as optimized driving efficiency and drivability. There is also another argument in favor of the new hybrid solution from Continental, which is its relatively low cost. This is the key to making cheap hybrid vehicles available and achieving high market penetration. The reason for this is that a 48-volt system requires considerably less effort in terms of insulation protection, electrical components are smaller and cheaper, and even the design can be made significantly more compact, because smaller gaps are required between the individual components than is the case with high-voltage technology.

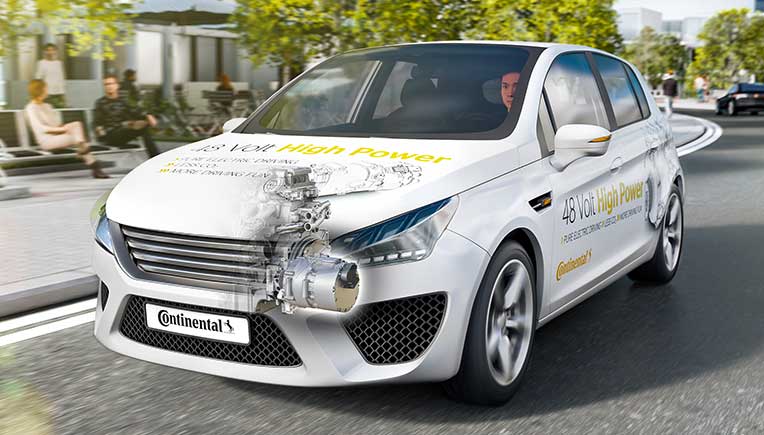

Continental is showcasing the new 48-volt high-power technology, which is also ready for series development, in a Ford Focus test vehicle. “With the new hybrid system, we are making the most of what is currently technologically possible for a 48-volt system,” said Stephan Rebhan. With the 48-volt high-power technology, Continental is playing a leading role in terms of performance, power density and efficiency. Full hybridization is made possible – all without the effort and costs involved in a high-voltage system.

Even a 48-volt plug-in hybrid drive would be possible

With an eye on the new approval regulations that have been in force since September 1, 2018, in accordance with the WLTP cycle, the 48-volt high-power technology could be developed even further. If, for instance, the system was supplemented by on-board charging technology and a larger battery, this would make even a plug-in hybrid drive featuring 48-volt technology possible. This is because the ability to drive in all-electric mode is no longer the main criterion for benefiting from the support for plug-in vehicles. Instead, it is the conversion of electrically stored energy into traction in general. The deciding factor for different funding initiatives is whether CO2 emissions can be reduced to below 50 g per kilometer.
